Product Details
Description

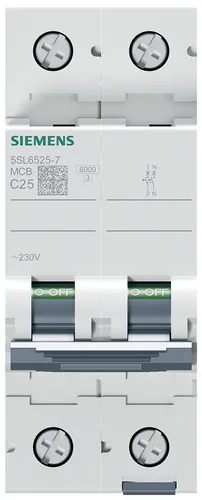

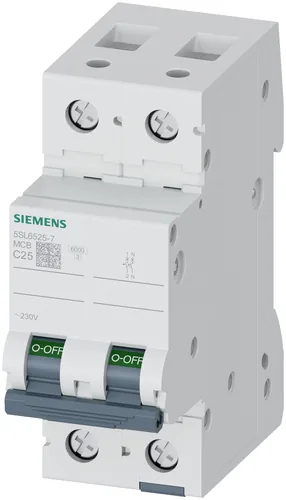

Siemens CIRCUIT BREAKER 6KA 1+N-P C25. Rated current: 25 A, Input current: 25 A, Input voltage: 230 V. Circuit breaker type: Miniature circuit breaker, Trip curve type: Type C, Breaking capacity: 6000 A. Width: 36 mm, Depth: 76 mm, Height: 90 mm. Quantity per pack: 1 pc(s), Package width: 40 mm, Package depth: 92 mm. Country of origin: Turkey, Minimum order quantity: 1 pc(s)
Features
Other features
Country of origin:
Turkey
Doesn't contain:
Halogen, Silicone
Packaging data
Minimum order quantity:
1 pc(s)
Package depth:
92 mm
Package height:
83 mm
Package weight:
259.3 g
Package width:
40 mm
Technical details
Additional equipment:
Yes
Ambient temperature range:
-25 - 45 °C
Battery included:
No
Compliance certificates:
CE, RoHS
Connectable solid conductor cross-section:
0.75 - 25 mm²
Connectable stranded conductor cross-section:
0.75 - 25 mm²
Current limiting class:
Class 3
Explosion-proof:
No
Maximum order quantity:
1 pc(s)
Mounting depth:
7 cm
Number of modular spacings:
2
Overvoltage category:
CAT III
Rated current:
25 A
Rated short-circuit breaking capacity (Icn, EN 60898, 230V):
6 kA
Rated short-circuit breaking capacity (Icn, EN 60898, 400V):
6 kA
Rated short-circuit breaking capacity (Icu, IEC 60947-2, 230V):
6 kA
Rated short-circuit breaking capacity (Icu, IEC 60947-2, 400V):
6 kA
Release characteristic:
C
Switching neutral conductor:
Yes
Voltage type:
AC

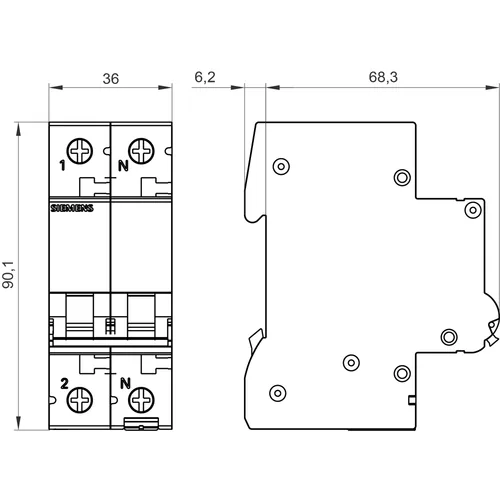

Weight & dimensions
Height:
90 mm
Depth:
76 mm
Width:
36 mm
Power
Power dissipation:
2.6 W
Total power loss:
5.2 W
Rated voltage:
230 V
Input voltage:
230 V
Input current:
25 A
Input frequency:
50 Hz
Features
Brand:
Siemens
Installation type:
DIN-rail
Pollution degree:
2
Number of poles:
2
Quantity per pack:
1 pc(s)
Breaking capacity:
6000 A
Trip curve type:
Type C
Circuit breaker type:
Miniature circuit breaker
Operational conditions
Operating temperature (T-T):
-25 - 45 °C
Storage temperature (T-T):
-40 - 75 °C
Performance
International Protection (IP) code:
IP20
