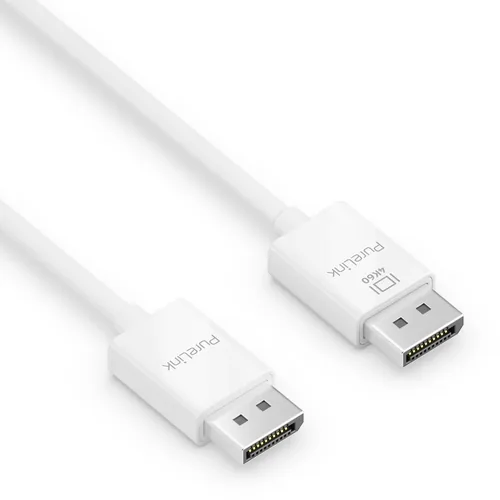

PureLink Premium 4K DisplayPort Cable – 1.00m, White
PureLink Premium 4K DisplayPort Cable – 1.00m, White

PureLink Premium 4K DisplayPort Cable – 1.00m, White

PureLink iSeries Kabel DisplayPort - DisplayPort, 1 m - Kabeltyp: Anschlusskabel -...

Brand: PureLink
EAN: 4251364709443
MPN: IS2020-010
12.20 CHF
> 5 Pcs from our external CH-warehouse
No right of return
Standard: between Wed 28 Oct and Thu 29 Oct
Express: between Tue 27 Oct and Wed 28 Oct
Free Shipping, no hidden costs [email protected] Return Policy Manufacturer Warranty Swiss Power Info - for products over 2300W, T23 plug required

Product Details

Description

PureLink Premium 4K DisplayPort Cable – 1.00m, White. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: CE, ROHS, REACH, WEEE, VW-1. Cable diameter: 4.8 mm, Connector 1 dimensions (WxDxH): 26 x 20 x 9.5 mm, Connector 2 dimensions (WxDxH): 26 x 20 x 9.5 mm. Package width: 90 mm, Package depth: 145 mm, Package height: 20 mm. Quantity per pack: 1 pc(s)

Features

Logistics data

Master (outer) case height: 340 mm
Master (outer) case length: 450 mm
Master (outer) case width: 340 mm
Products per master (outer) case: 120 pc(s)

Other features

HBR3 support: No

Packaging data

Package depth: 145 mm
Package height: 20 mm
Package type: Box
Package width: 90 mm

Weight & dimensions

Connector 1 dimensions (WxDxH): 26 x 20 x 9.5 mm
Connector 2 dimensions (WxDxH): 26 x 20 x 9.5 mm
Bend radius (dynamic/static): 33.6/33.6 mm
Cable diameter: 4.8 mm

Design

Product colour: White
Cable length: 1 m

Features

Brand: PureLink
Cable type: Round cable
Cable material: Copper
AWG wire size: 32
Maximum resolution: 3840 x 2160 pixels
Number of shielding layers: 3
Data transfer rate: 21.6 Gbit/s
Connector housing material: Acrylonitrile butadiene styrene (ABS)
DisplayPort version: 1.2
Jacket material: Polyvinyl chloride (PVC)
Connector 2 form factor: Straight
Connector 1 form factor: Straight
Connector contacts plating: Gold
Connector 1 gender: Male
Connector 2 gender: Male
Connector 2: Displayport
Connector 1: DisplayPort
Quantity per pack: 1 pc(s)

Display

Maximum refresh rate: 60 Hz

Attachments

Product Brochure (mmo_95784049_1661280689_4383_27755.pdf, 435 Kb) [Download]
