Product Details
Description

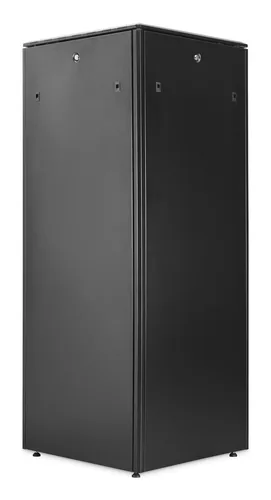

The DIGITUS® network cabinets of the Unique Light series combine high stability with great flexibility in cable management, for the high demands of modern IT infrastructure with the most diverse application scenarios.
- Load capacity of the 483 mm (19") profile rails of up to 800 kg

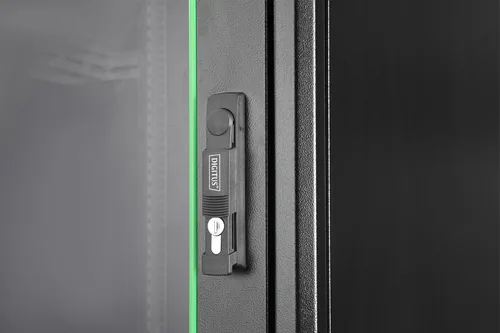

- Swivel handle with profile half-cylinder lock incl. type 333 key on the front door

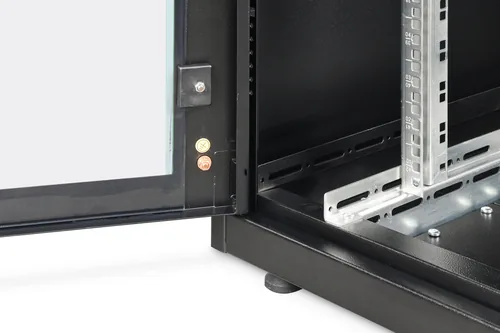

- Modular, openable base chassis with removable 19" blind panels

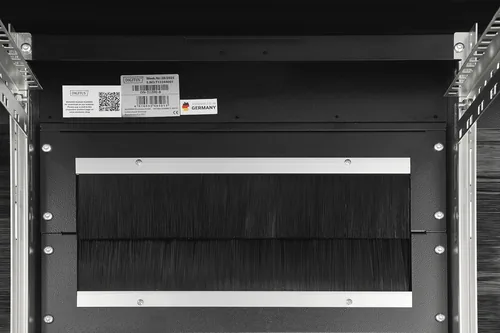

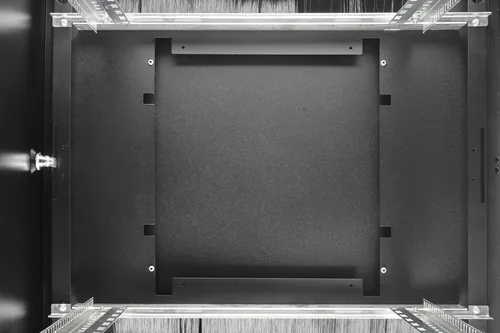

- Flexible cable routing options thanks to generous cable inlets with brushes in the roof and floor

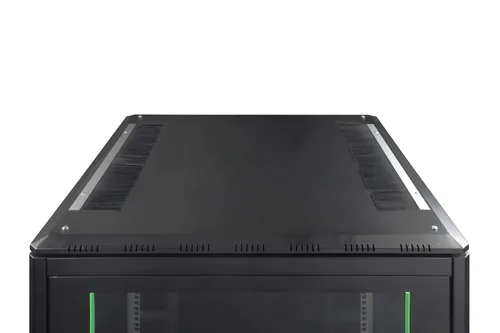

- Roof is prepared to accommodate a fan unit and an attached, removable cover
- Ready for immediate use: Delivery is assembled (cabinet can be completely dismantled if required)

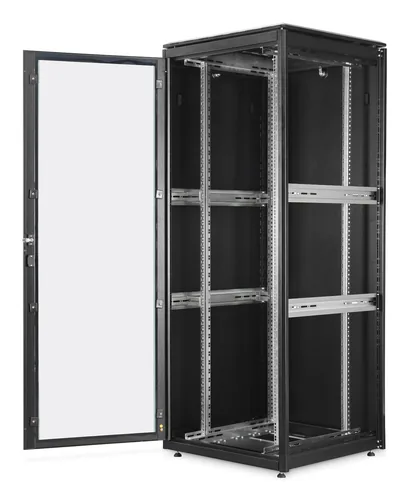

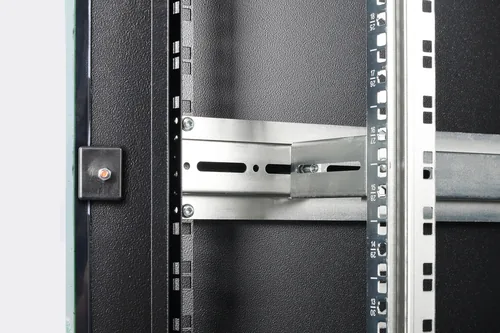

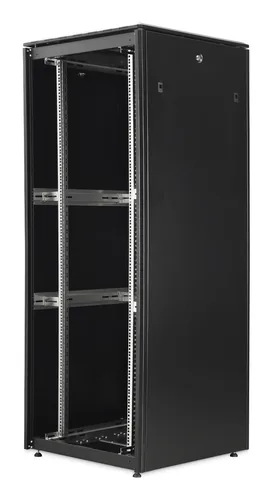

The network cabinets in the Unique Light series have been designed and produced for particularly convenient and flexible network cabling. Sophisticated optimizations offer market-compliant stability with maximum flexibility. A modular base chassis, which can be opened using screwed 483 mm (19") blind panels, offers sufficient space for cables of all kinds. In addition, there are side cable inlets with brushes at the top and bottom of the enclosure, as well as another at the rear of the base chassis. Two pairs of cranked and galvanized 483 mm (19") profile rails, labelled with height units that can be read in opposite directions, are installed inside. They are infinitely adjustable and are connected to additional depth struts in the cabinet. Each enclosure is a robust steel construction made from sheet steel up to 1.5 mm thick. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors improve accessibility. Door hinges can be changed. Furthermore, the cabinets can be completely dismantled if required thanks to the demountable design.
Features
International Protection (IP) code:
IP20
Logistics data
UK Trade Tariff code:
94032080
Packaging data
Package depth:
850 mm
Package height:
2103 mm
Package weight:
130 kg
Package width:
850 mm
Screws included:
Yes
Nuts included:
Yes
Features
Brand:
Digitus
Country of origin:
China
Side panel key lock:
Yes
Front door key lock:
Yes
Back door key lock:
Yes
Key lock:
Yes
Back door style:
Blind
Front door style:

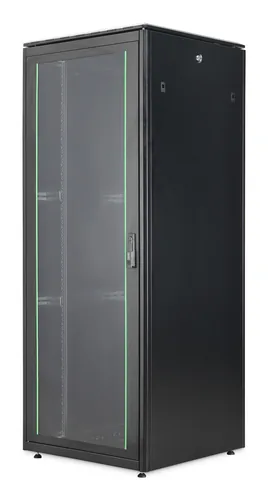

Glass door
Side panel style:
Blind
Side panels included:
Yes
Removable side panels:
Yes
Removable front door:
Yes
Removable back door:
Yes
Side panel construction:
Steel
Front door construction:
Glass
Back door construction:
Steel
Ergonomics
Adjustable feet:
Yes
Cable management:
Yes
Weight & dimensions
Mounting depth (max):
74.3 cm
Mounting depth (min):
56.3 cm
Height:
2053 mm
Depth:
800 mm
Width:
800 mm
Size (imperial):
48.3 cm (19")
Performance
Material:
Steel
Design
Product colour:
Black
Rack capacity:
42U
Mounting
Maximum weight capacity:
800 kg
