Product Details
Description

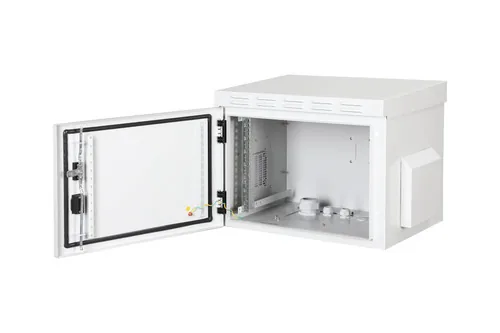

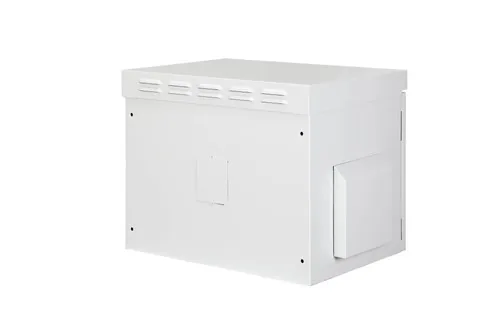

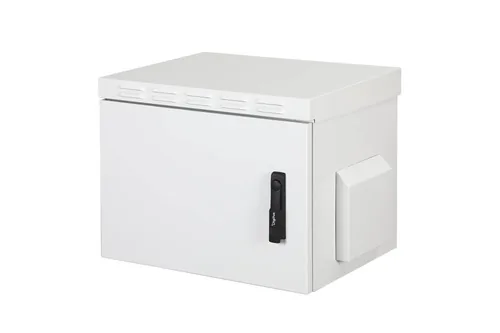

The DIGITUS® IP55 outdoor wall-mounted enclosures are designed for industrial applications. They offer protection against water and dust in accordance with protection class IP55.
- Protected against dust in harmful quantities and water jets (IP 55)

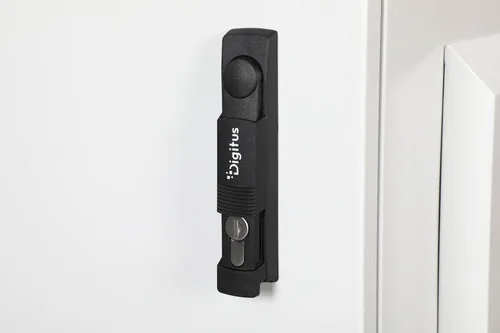

- Steel front door with a lockable swing-lever handle and a 3-point locking system

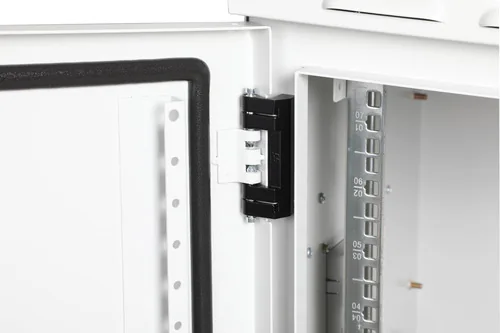

- Front door with grounding and two welded-on, reinforcing U-shaped beams, as well as a gasket
- Can be used as a freestanding unit with a separate base

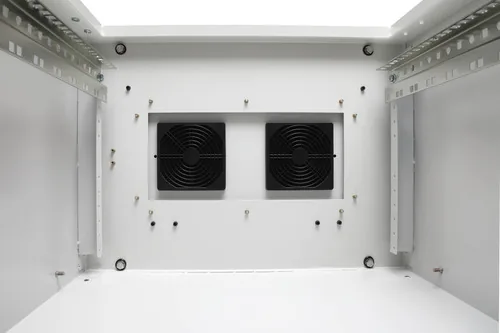

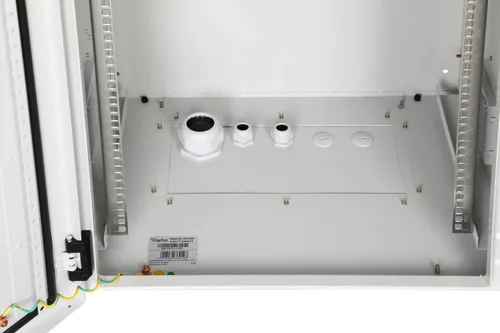

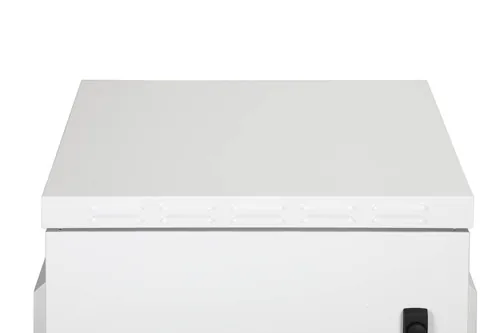

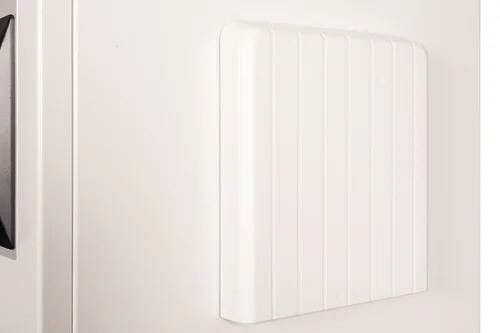

The wall-mounted industrial network cabinets, with an IP55 rating, are specifically designed to meet the needs of harsh environments, particularly outdoor settings. These wall-mounted enclosures deliver top performance thanks, among other features, to their 3-point locking system with a lockable swivel handle and insulated PG cable glands. Integrated ventilation filter housings ensure a fresh air intake (protection against water and dust ingress per IP54). Applications include, for example, outdoor areas exposed to environmental elements (rain, dust, hail, snow, splashing water). To accommodate a fan module, the roof chassis is also equipped with a filtered compartment. A pair of galvanized 483 mm (19") profile rails, labeled with height units readable in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of sheet steel up to 2.0 mm thick. The finish consists of an electrostatic powder coating in the standard color gray (RAL 7035). Wall mounting is accomplished using the included mounting brackets. Optionally, the cabinets can be used as freestanding units with a base or mounted on poles using a mounting kit.
Features
Logistics data
Harmonized System (HS) code:
85381000
UK Trade Tariff code:
94032080
Other features
Country of origin:
China
Packaging data
Package depth:
500 mm
Package height:
540 mm
Package volume:
175500 cm³
Package weight:
32 kg
Package width:
650 mm
Weight & dimensions
Height:
450 mm
Depth:
450 mm
Width:
600 mm
Size (imperial):
48.3 cm (19")
Design
Product colour:
Light grey
International Protection (IP) code:
IP55
Features
Brand:
Digitus
Front door construction:
Steel
Rack capacity:
7U
Main features
Type:
-
Mounting
Maximum weight capacity:
100 kg
