Product Details
Description
19" wall-mount rack with 2U or 4U and 24-40 cm depth
Space-saving wall mounting:The compact 19" rack holds compatible network components and suits installations with limited space.
Flexibly adjustable depth:Adjust the installation depth from 24-40 cm to suit the components used and the mounting conditions.
Choice of 2U or 4U:Depending on the variant, 2U or 4U is available for mounting compatible 19" components.
Mounting accessories included:A set of 8 M6 cage nuts and a set of 4 wall-mounting screws are included.

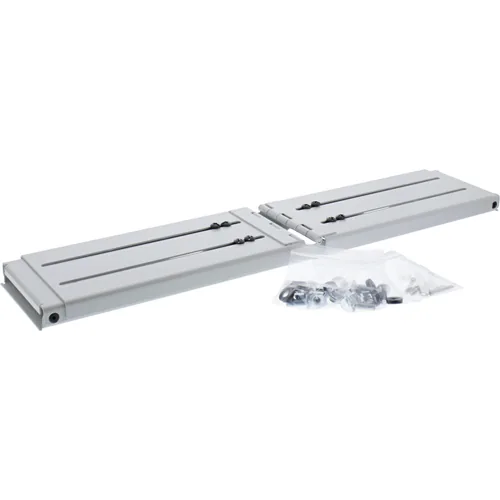

Supplied in a space-saving form:The rack is supplied folded, reducing storage and transport volume before assembly.

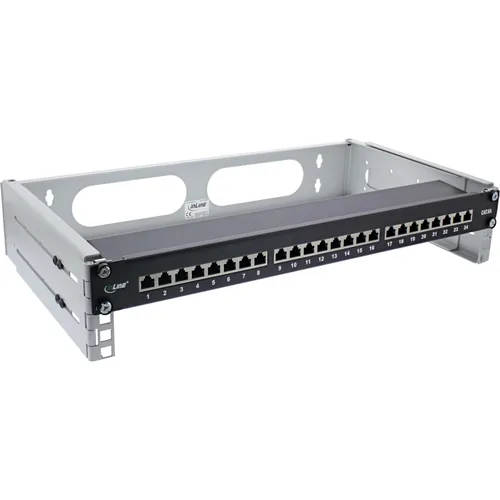

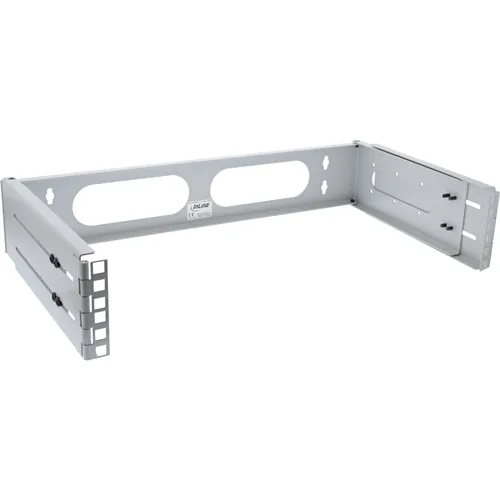

The InLine® 19" wall-mount rack provides a compact solution for installing compatible 19" network components. Depending on the version, 2U or 4U is available. The 2U version suits, for example, a combination of patch panel and network switch.
The depth can be adjusted from 24-40 cm, allowing the rack to suit different installation conditions and component depths.
The rack is supplied folded and can be assembled on site. A set of 8 M6 cage nuts and a set of 4 wall-mounting screws are included.

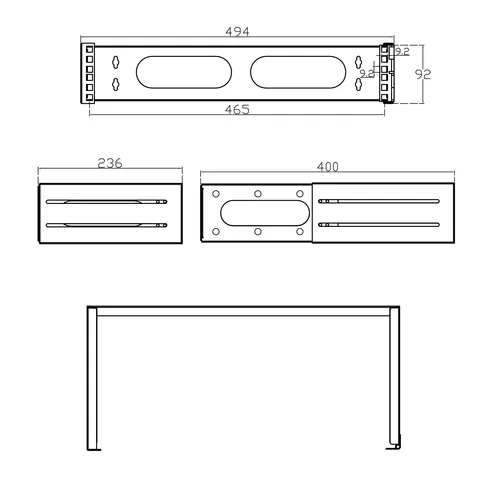

19" wall-mount rack
Variants with 2U or 4U
2U: 92 mm height
4U: 183 mm height
Width: 49.4 cm
Depth: Adjustable from 24-40 cm
2U load capacity: Approx. 10 kg max.
4U load capacity: Approx. 12 kg max.
Features
Packaging content
Mounting kit:
Yes
Wall mounting kit:
Yes
Screws included:
Yes
Packaging data
Package depth:
515 mm
Package height:
45 mm
Package volume:
2500 cm³
Package weight:
1.84 kg
Package width:
105 mm
Number of screws:
4
Weight & dimensions
Mounting depth (max):
40 cm
Mounting depth (min):
24 cm
Depth:
400 mm
Width:
490 mm
Height:
90 mm
Features
Brand:
InLine
Adjustable depth:
Yes
Frame type:
Open
Design
Product colour:
Grey
Rack capacity:
2U
