Product Details
Description

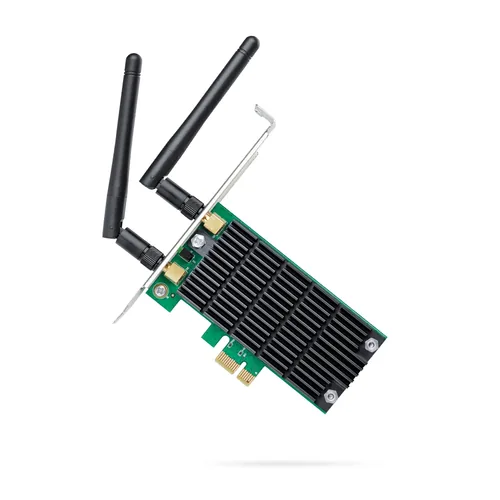

TP-Link Archer T4E. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black, Green
Features
Certificates
Compliance certificates:
RoHS, Federal Communications Commission (FCC), CE
Logistics data
Harmonized System (HS) code:
85176990
Other features
Conflict-Free:
Yes
Transmit power range:
59.5 - 92 dBmW
Packaging data
Package depth:
148 mm
Package height:
42 mm
Package weight:
300 g
Package width:
207 mm
Resource CD:
Yes
Quantity per pack:
1 pc(s)
Weight & dimensions
Height:
21.5 mm
Depth:
115.2 mm
Width:
120.8 mm
Network
Bandwidth (first):
2.4 GHz
Bandwidth (second):
5 GHz
Modulation:
16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms:
64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK
Top Wi-Fi standard:
Wi-Fi 5 (802.11ac)
WLAN data transfer rates supported:
11,54,300,867 Mbit/s
Wi-Fi:
Yes
Networking standards:
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi standards:
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi band:
Dual-band (2.4 GHz / 5 GHz)
Operational conditions
Storage relative humidity (H-H):
5 - 90%
Operating relative humidity (H-H):
10 - 90%
Storage temperature (T-T):
-40 - 70 °C
Operating temperature (T-T):
0 - 40 °C
Design
Operating modes:
Infrastructure mode
Product colour:
Black, Green
Antennas quantity:
2
Transmitting power (FCC):
24 dBm
Packaging content

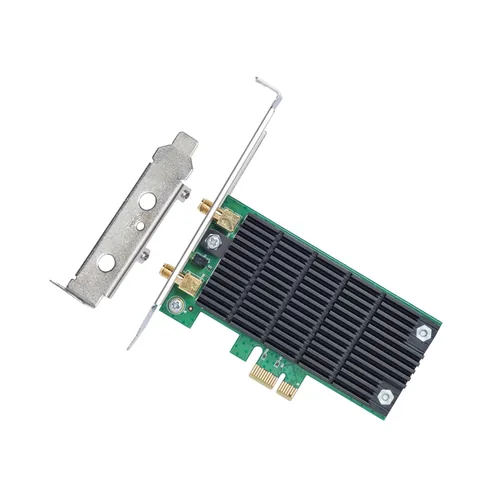

Low-profile bracket:
Yes
Quick installation guide:
Yes
Mounting brackets included:
Yes
Antenna
Detachable antenna(s):
Yes
Antenna design:
External
Transmitting power (CE):
23 dBm
Ports & interfaces
PCI Card form factor:
Half-height (low-profile)
Connectivity technology:
Wireless
Host interface:
PCI Express
Features
Brand:
TP-Link
Maximum data transfer rate:
867 Mbit/s
Component for:
PC
Sustainability
Sustainability compliance:
Yes
System requirements
Windows operating systems supported:
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows
Processor
Package type:
Box
