Product Details
Description

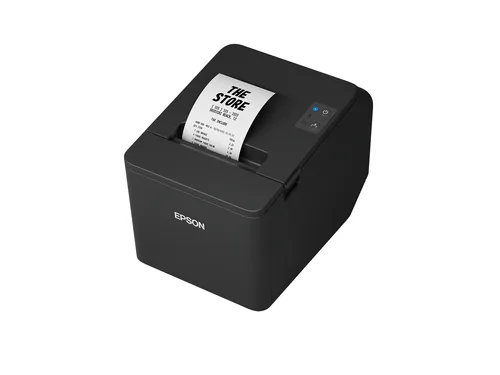

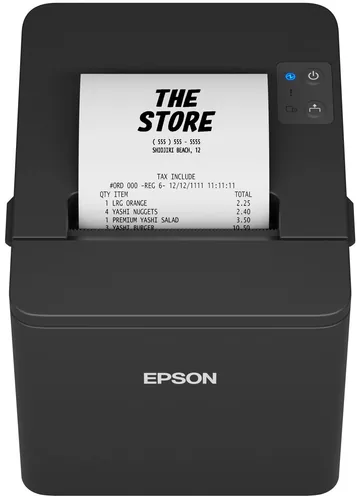

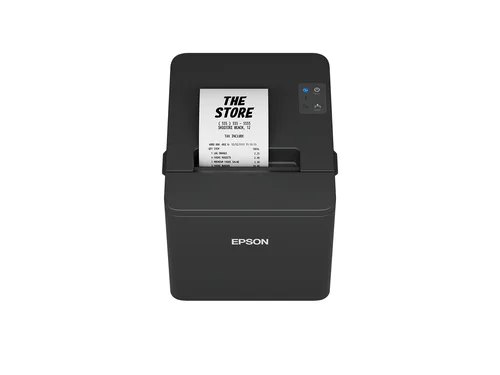

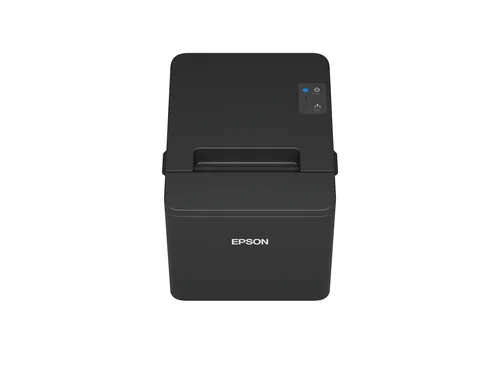

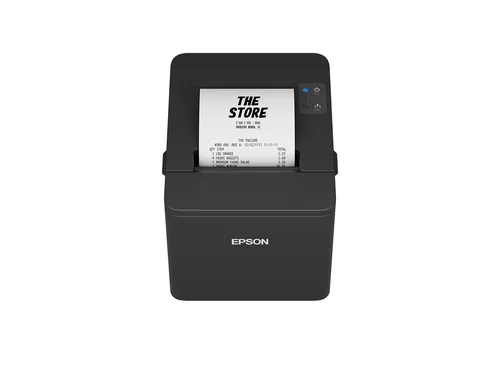

Epson TM-T20IV (101):USB+SERIAL, PS,BLK,. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 53 - 75 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 80 mm. Connectivity technology: Wired, USB connector: USB Type-B, Serial interface type: RS-232. Built-in barcodes: CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E, Sound pressure level (printing): 55 dB, Mean time between failures (MTBF): 360000 h. Product colour: Black
Features
Certificates
Compliance certificates:
CE
Logistics data
Pallet gross height:
2.11 m
Pallet height (UK):
2.11 m
Pallet length (UK):
120 cm
Products per pallet:
112 pc(s)
Products per pallet (UK):
168 pc(s)
Products per pallet layer:
16 pc(s)
Products per pallet layer (UK):
24 pc(s)
Pallet gross length:
120 cm
Pallet gross width:
80 cm
Other features
Buffer size:
4 KB
Country of origin:
Philippines
Mean cycles between failures (MCBF):
60000000
Mean time between failures (MTBF):
360000 h
Wi-Fi:
No
Technical details
Paper size roll paper:
79.50 ± 0.50 (W) mm x dia 83.00 mm,<br>57.50 ± 0.50 (W) mm x dia 83.00 mm
Operational conditions
Storage relative humidity (H-H):
10 - 90%
Operating relative humidity (H-H):
10 - 90%
Storage temperature (T-T):
-10 - 50 °C
Operating temperature (T-T):
5 - 45 °C
Ports & interfaces
Optional connectivity:
Ethernet, Wireless LAN
USB port:
Yes
Serial interface:
Yes
USB 2.0 ports quantity:
1
Connectivity technology:
Wired
Serial interface type:
RS-232
USB connector:
USB Type-B
Packaging content
AC adapter included:
Yes
Box contents:
AC adapter, C1, Cable cover, EURO AC cable, Main unit, Paper roll spacer
Cables included:
AC
Quantity per pack:
1 pc(s)
Packaging data
Package depth:
235 mm
Package height:
280 mm
Package weight:
2.65 kg
Package width:
195 mm
Weight & dimensions
Height:
146 mm
Depth:
199 mm
Width:
140 mm
System requirements
Mobile operating systems supported:
Android, iOS
Design
Product colour:
Black
Performance
Font styles:
ANK
Windows operating systems supported:
Yes
Technology:
Thermal Line
Built-in barcodes:
CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Power
AC input frequency:
50/60 Hz
AC input voltage:
100 - 230 V
Power consumption:
Standby:0.1 A, Mean:1.8 A
Power consumption (printing):
27.2 W
Voltage:
24 V
DC output voltage:
24 V
Power consumption (standby):
0.96 W
Power source type:
DC
Features
Brand:
Epson
Built-in sensors details:
Paper End Sensor, Paper Near End Sensor
Print head life:
150 km
Receive buffer:
4 KB
Safety:
UL, CSA, TÜV
Printing media thickness:
53 - 75 µm
Autocutter durability:
2 million cuts
Cutter:
Yes
Sound pressure level (printing):
55 dB
Ergonomics
Wall mountable:
Yes
Paper handling
Maximum roll diameter:
8.3 cm
Supported paper width:
80 mm
Printing
Character density:
22.6 cpi
Print speed:
250 mm/sec
Colour:
No
Printing characters:
Graphic
Character size:
1.25 x 3 mm
Network
Ethernet LAN:
No
