Product Details
Description

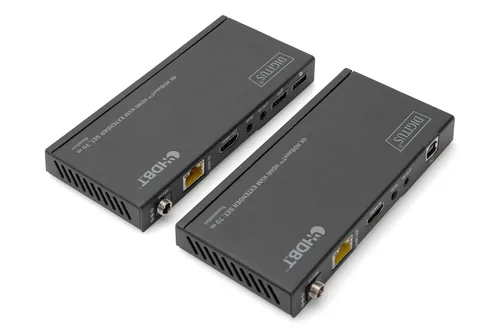

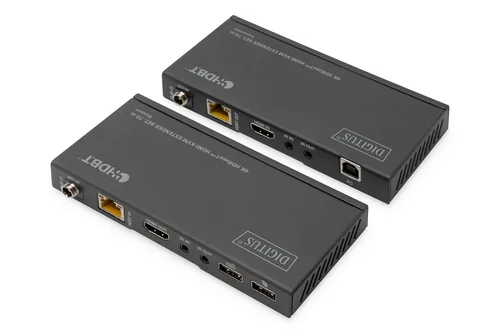

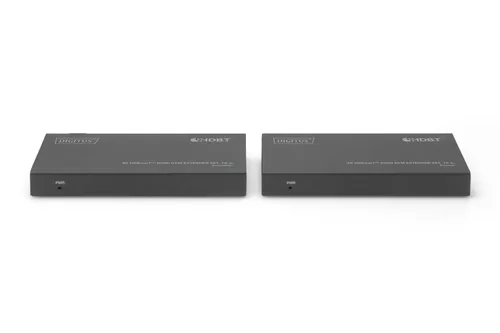

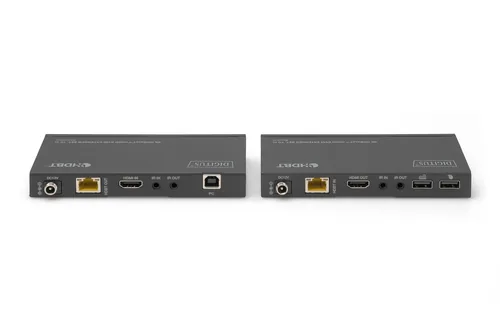

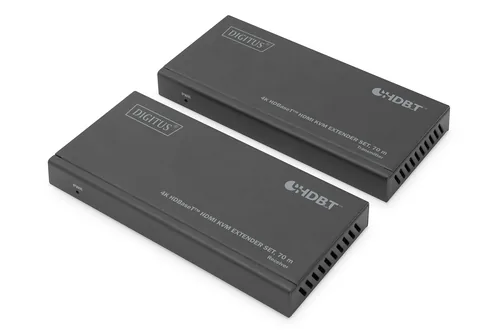

Extends the HDMI signal up to 70 m and offers the option of controlling the keyboard and mouse via USB on the receiver unit
- Extends the maximum length for HDMI cables to up to 70 m (Full HD, 1080p/60Hz) or 40 m (UHD, 4K/30Hz) via a simple network cable
- KVM functionality (USB 1.1) for connecting mouse & keyboard
- PoC (Power over Cable) - only one unit requires an external power supply unit
- Supports CAT 5e, 6, 6A, 7, 8 network cables
- Video bandwidth: 10.2 Gbps
- Supports HDBaseTTM 1.0
- HDCP 2.2, 1.4
- IR transmission (bi-directional)
- Compact design for simple and flexible installations
- Robust metal housing
The HDBaseTTM HDMI KVM Extender Set enables signal transmission over long distances using a simple copper data cable. The maximum transmission distance is 70 m (Full HD). 4K signals can be extended up to 40 m. Thanks to PoC, only one unit needs to be supplied with power using an external power supply unit. Bidirectional IR transmission and KVM functionality (USB 1.1) for connecting a mouse and keyboard are also included.
Features
Transmitter video port type:
HDMI
Logistics data
Harmonized System (HS) code:
84733080
UK Trade Tariff code:
85176200
Operational conditions
Operating temperature (T-T):
0 - 40 °C
Packaging content
Cables included:
USB
Mounting bracket(s) included:
Yes
Manual:
Yes
AC adapter included:
Yes
Technical details
Material:
Metal
Packaging data
Package depth:
185 mm
Package height:
75 mm
Package volume:
3399.38 cm³
Package weight:
950 g
Package width:
245 mm
Main features
Type:
-
Weight & dimensions
Receiver weight:
227 g
Receiver height:
1.8 cm
Receiver depth:
6.5 cm
Receiver width:
14 cm
Transmitter weight:
224 g
Transmitter height:
1.8 cm
Transmitter depth:
6.5 cm
Transmitter width:
14 cm
Power
Power consumption (transmitter) (max):
6.6 W
Power consumption (receiver) (max):
6.6 W
Power consumption (transmitter) (max):
6.6 W
AC adapter output current:
1 A
AC adapter output voltage:
12 V
Receiver
Receiver local keyboard/mouse port type:
USB
Receiver local video port type:
HDMI
Features
Brand:
Digitus
Power over Ethernet (PoE):
No
Cable types supported:
Cat6, Cat6a, Cat7, Cat8
Performance
LED indicators:
Yes
Maximum digital resolution:
3840 x 2160 pixels
Maximum transfer distance:
70 m
Ports & interfaces
USB 1.1 ports quantity:
2
RJ-45 ports quantity:
2
USB port type:
USB Type-A
RJ-45 ports quantity (receiver):
1
RJ-45 ports quantity (transmitter):
1
Connectivity technology:
Wired
Video
Maximum resolution:
1920 x 1080 pixels
Ergonomics
Plug and Play:
Yes
Design
Country of origin:
China
Product colour:
Black
