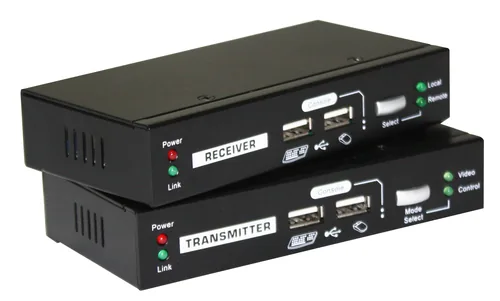

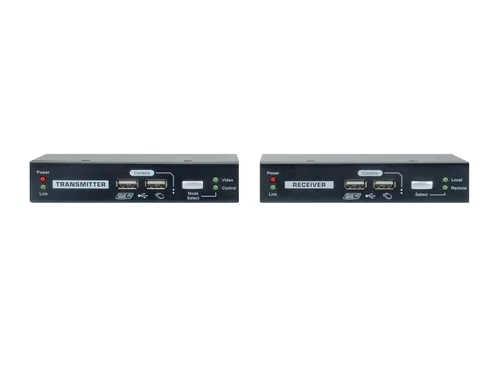

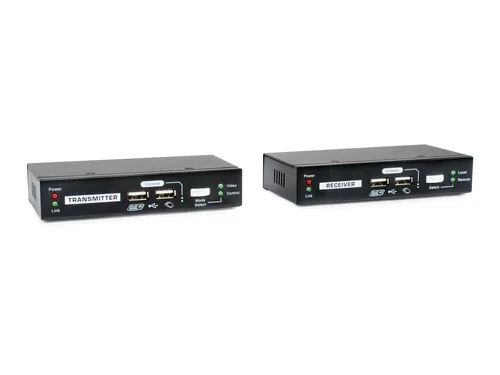

KVM Extender KVM-9036 over IP 2xUSB

Brand: LevelOne
EAN: 4015867229576
MPN: KVM-9036
228.40 CHF
> 10 Pcs from our external EU-warehouse
No right of return
Standard: between Fri 30 Oct and Wed 11 Nov
Free Shipping, no hidden costs [email protected] Return Policy Manufacturer Warranty Swiss Power Info - for products over 2300W, T23 plug required

Product Details

Description

LevelOne KVM over Cat.5 Extender. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter video port type: VGA, Transmitter local video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. USB port type: USB Type-B. Transmitter width: 13.1 cm, Transmitter depth: 6.5 cm, Transmitter height: 2.6 cm

Features

Transmitter local keyboard/mouse port type: USB
Transmitter local video port type: VGA
Transmitter local video port: Yes
Transmitter video port type: VGA
Connectivity technology: Wired

Certificates

Compliance certificates: CE, Federal Communications Commission (FCC), UKCA, WEEE

Logistics data

Master (outer) case gross weight: 21.3 kg
Master (outer) case height: 430 mm
Master (outer) case length: 370 mm
Master (outer) case width: 440 mm
Products per master (outer) case: 12 pc(s)
Pallet gross height: 11.5 cm
Pallet gross length: 94 cm
Pallet gross width: 135 cm

Packaging content

Quick installation guide: Yes
AC adapter included: Yes

Packaging data

Package depth: 176 mm
Package height: 139 mm
Package weight: 1.69 kg
Package width: 204 mm
Cables included: KVM

Technical details

Sustainability compliance: Yes

Operational conditions

Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -5 - 65 °C
Operating temperature (T-T): 0 - 40 °C

Design

LED indicators: Yes

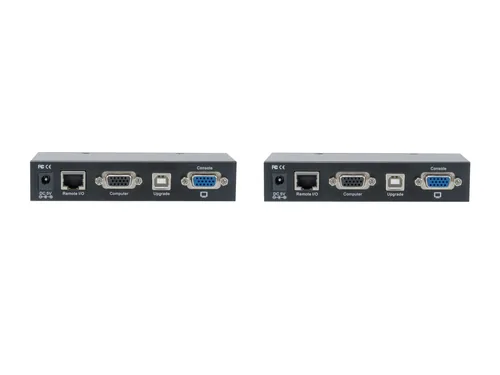

Ports & interfaces

USB 2.0 ports quantity: 2
USB port type: USB Type-B
RJ-45 ports quantity (receiver): 1
RJ-45 ports quantity (transmitter): 1

Weight & dimensions

Receiver weight: 586 g
Receiver height: 2.6 cm
Receiver depth: 6.5 cm
Receiver width: 13.1 cm
Transmitter weight: 586 g
Transmitter height: 2.6 cm
Transmitter depth: 6.5 cm
Transmitter width: 13.1 cm

Main features

Type: -

Ergonomics

Plug and Play: Yes

Receiver

Receiver local keyboard/mouse port type: USB
Receiver local video port type: VGA

Features

Brand: LevelOne
Country of origin: Taiwan
Product colour: Black
KVM port selection: Hotkeys, Push-buttons

Performance

Cable types supported: Cat5, Cat5e
Maximum transfer distance: 100 m
Maximum analog resolution: 1920 x 1200 pixels
On Screen Display (OSD): Yes

Management features

Firmware upgradeable: Yes

Attachments

Product Brochure (mmo_108850069_1683647494_1169_14682.pdf, 5,700 Kb) [Download]

User manual (mmo_108850069_1683647816_8072_18943.pdf, 1,309 Kb) [Download]

CE Marking (mmo_108850069_1683647831_4448_28641.pdf, 86 Kb) [Download]
