Product Details
Description

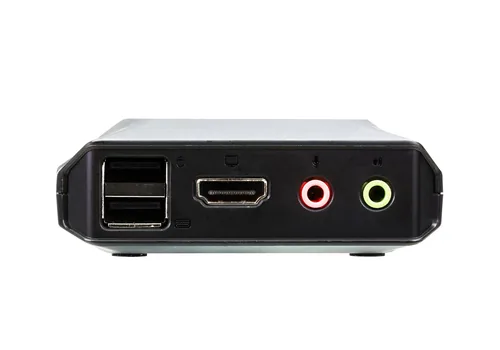

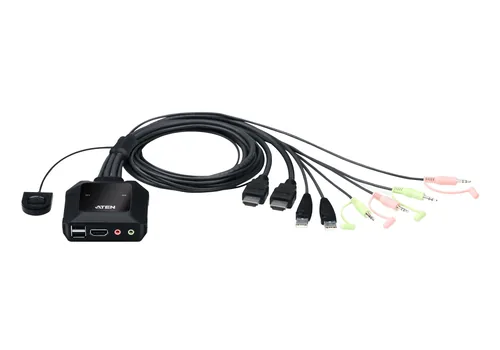

ATEN 2-Port USB 4K HDMI Cable KVM Switch with Remote Port Selector. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 4096 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic, Cable length: 1.2 m. Power source: USB, Input voltage: 5 V, Power consumption (typical): 3.47 W. Width: 84.2 mm, Depth: 83.4 mm, Height: 30.4 mm
Features
Logistics data
Harmonized System (HS) code:
85176200
Products per master (outer) case:
20 pc(s)
Master (outer) case gross weight:
9.3 kg
Master (outer) case height:
330 mm
Master (outer) case length:
389 mm
Master (outer) case width:
328 mm
Master (outer) case net weight:
6.8 kg
Packaging data
Package depth:
155 mm
Package height:
223 mm
Package weight:
420 g
Package width:
55 mm
Weight & dimensions
Height:
30.4 mm
Depth:
83.4 mm
Width:
84.2 mm
Operational conditions
Storage relative humidity (H-H):
0 - 80%
Operating relative humidity (H-H):
0 - 80%
Storage temperature (T-T):
-20 - 60 °C
Operating temperature (T-T):
0 - 50 °C
Design
Rack mounting:
No
LED indicators:
Yes
Product colour:
Black
Housing material:
Plastic
Cable length:
1.2 m
Remote switch cable length:
1.8 m
Wired remote switch:
Yes
Ports & interfaces
Number of microphone inputs:
3
Audio connections:
Yes
USB connector type:
USB Type-A
Console HDMI ports quantity:
1
Console ports:
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity:
2
Mouse port type:
USB
Keyboard port type:
USB
Number of computers controlled:
2
HDMI ports quantity:
3
Headphone outputs:
3
Video port type:
HDMI
Features
Brand:
ATEN
Maximum resolution:
4096 x 2160 pixels
Plug and Play:
Yes
Linux operating systems supported:
Yes
Windows operating systems supported:
Yes
Hot-Plug support:
Yes
Packaging content
Manual:
Yes
Quick installation guide:
Yes
System requirements
Mac operating systems supported:
Yes
Power
Input voltage:
5 V
Power consumption (typical):
3.47 W
Power source:
USB
Performance
HDCP:
Yes
HDCP version:
2.2
Built-in display:
No
Video bandwidth:
60 Hz
Display
HD type:
4K Ultra HD
