Product Details
Description

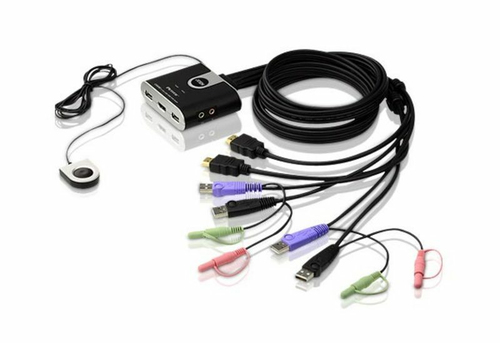

ATEN 2-Port USB HDMI KVM Switch with Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: WUXGA, Maximum resolution: 1920 x 1200 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Plastic. Power source: DC, Input voltage: 5 V, Power consumption (typical): 0.72 W. Width: 82.4 mm, Depth: 66.5 mm, Height: 25.2 mm
Features
Logistics data
Harmonized System (HS) code:
85176200
Master (outer) case gross weight:
6.13 kg
Master (outer) case height:
182 mm
Master (outer) case length:
405 mm
Master (outer) case net weight:
4.09 kg
Master (outer) case width:
395 mm
Products per master (outer) case:
10 pc(s)
Packaging data
Package depth:
163 mm
Package height:
235 mm
Package weight:
550 g
Package width:
70 mm
Weight & dimensions
Height:
25.2 mm
Depth:
66.5 mm
Width:
82.4 mm
Operational conditions
Storage relative humidity (H-H):
0 - 80%
Operating relative humidity (H-H):
0 - 80%
Storage temperature (T-T):
-20 - 60 °C
Operating temperature (T-T):
0 - 50 °C
Packaging content
Manual:
Yes
Quick installation guide:
Yes
Design
LED indicators:
Yes
Push button:
Yes
Product colour:
Black
Built-in display:
No
Rack mounting:
No
Ports & interfaces
USB 2.0 Type-A hub ports quantity:
4
Number of microphone inputs:
3
Audio connections:
Yes
Console ports:
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity:
2
HDMI ports quantity:
2
Mouse port type:
USB
Keyboard port type:
USB
Number of computers controlled:
2
Headphone outputs:
3
Video port type:
HDMI
Features
Brand:
ATEN
Maximum resolution:
1920 x 1200 pixels
USB connector type:
USB Type-A
Ergonomics
Housing material:
Plastic
Power
Input voltage:
5 V
Power consumption (typical):
0.72 W
Power source:
DC
Keyboard
Hot keys:
Yes
Performance
Scan interval:
3,5,10,20 s
Video bandwidth:
60 Hz
Display
HD type:
WUXGA
