ATEN 4-Port USB KM Switch

Brand: ATEN
EAN: 4719264646232
MPN: 1805198
305.30 CHF
> 5 Pcs from our external EU-warehouse
No right of return
Standard: between Thu 29 Oct and Mon 09 Nov
Free Shipping, no hidden costs [email protected] Return Policy Manufacturer Warranty Swiss Power Info - for products over 2300W, T23 plug required

Product Details

Description

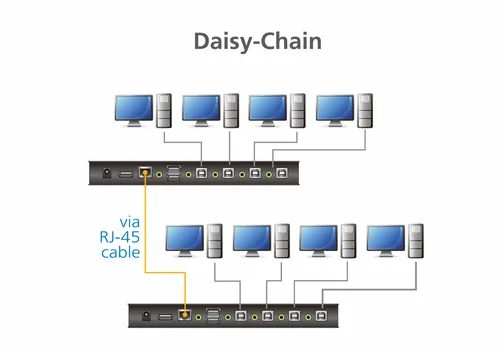

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console.

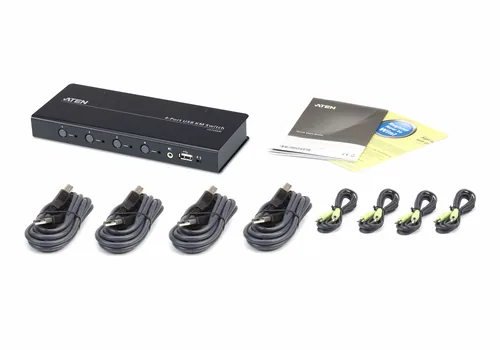

1x 4-port USB Boundless KM Switch
4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft)
4x LIN5-0205-21CG Audio Cables (1.8m/6ft)
1x User Instructions

Features

Hot keys: Yes

Logistics data

Harmonized System (HS) code: 85176200
Master (outer) case gross weight: 5.73 kg
Master (outer) case height: 194 mm
Master (outer) case length: 336 mm
Master (outer) case net weight: 4.5 kg
Master (outer) case width: 300 mm
Products per master (outer) case: 5 pc(s)

Packaging data

Package depth: 283 mm
Package height: 173 mm
Package weight: 1.07 kg
Package width: 62 mm

Weight & dimensions

Height: 25 mm
Depth: 80.6 mm
Width: 200 mm

Operational conditions

Operating relative humidity (H-H): 0 - 80%
Storage temperature (T-T): -20 - 60 °C
Operating temperature (T-T): 0 - 50 °C

Design

LED indicators: Yes
Push button: Yes
Product colour: Black
Housing material: Metal, Plastic
Built-in display: No

Ports & interfaces

DC-in jack: Yes
USB 2.0 Type-A hub ports quantity: 2
Console ports: 3.5mm headphone, RJ–45, USB A
Console USB ports quantity: 2
Mouse port type: USB
USB hub: Yes
Keyboard port type: USB
Number of computers controlled: 4
USB 2.0 Type-B ports quantity: 4

Features

Brand: ATEN

Packaging content

Cables included: Audio (3.5mm), USB
Manual: Yes

Power

Power source: DC

Performance

Daisy chain: Yes

Attachments

Product Brochure (mmo_59131087_1628239163_2674_52601.pdf, 1,593 Kb) [Download]

Product Brochure (mmo_59131087_1628239198_0808_31319.pdf, 273 Kb) [Download]

User manual (mmo_59131087_1628239173_6161_59311.pdf, 3,307 Kb) [Download]

User manual (mmo_59131087_1628239179_8595_31185.pdf, 2,919 Kb) [Download]

User manual (mmo_59131087_1628239168_9556_52785.pdf, 8,315 Kb) [Download]

Drawing (mmo_59131087_1628239188_6358_55050.pdf, 20 Kb) [Download]
