Product Details
Description

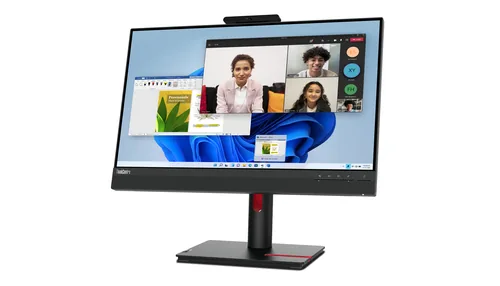

Tiny Packages that pack a punch

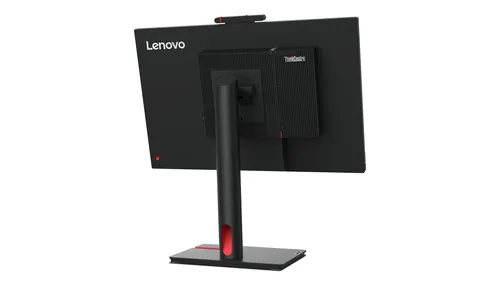

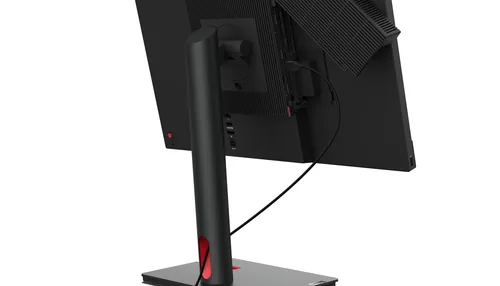

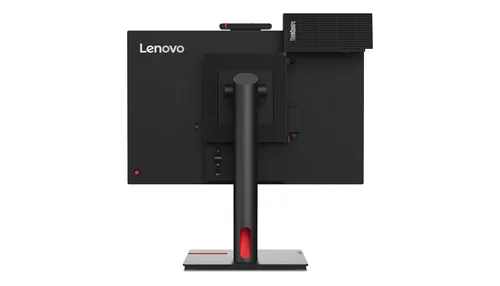

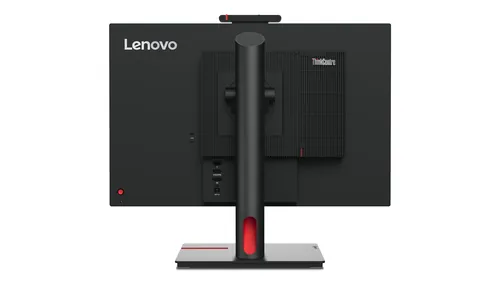

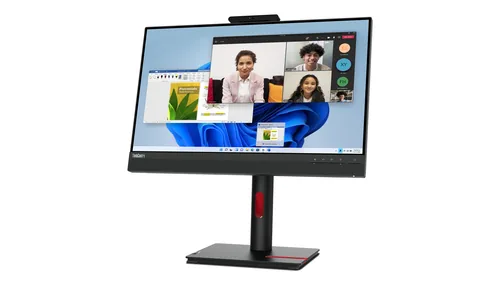

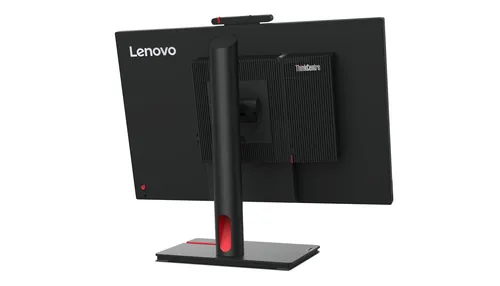

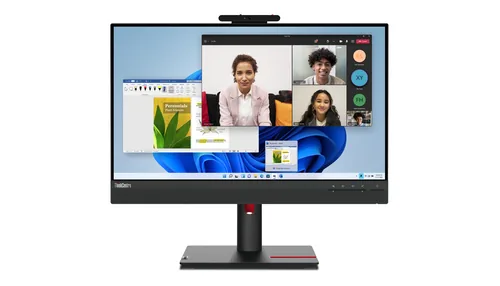

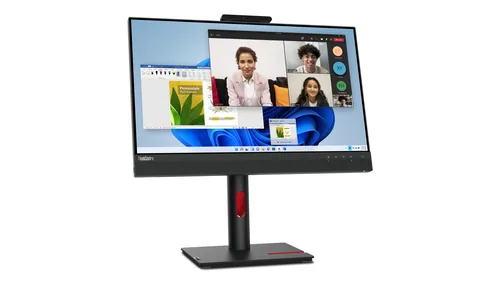

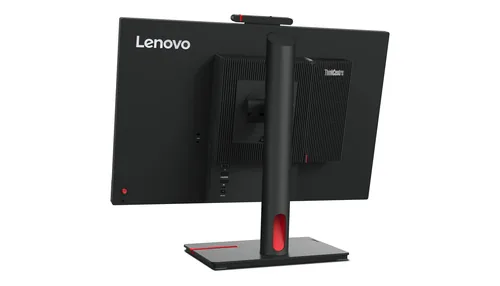

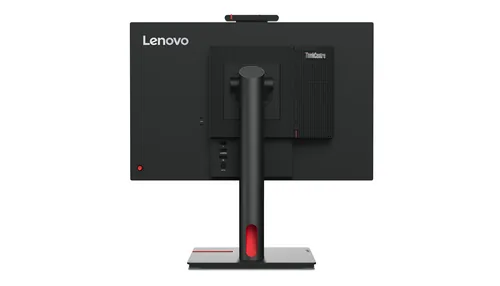

The TIO 24 Gen 5 is a modular device that supports Lenovo’s range of ThinkCentre and ThinkStation Tiny Computers from 4th Gen. You can easily and quickly attach the Tiny to the monitor and secure them in a dedicated slot on the monitor’s back, offering a clutterfree desk. An unchanged installation process ensures that you have a consistent and smooth experience when attaching Tiny PCs to the monitor. Connect multiple different devices such as laptops, towers, or notebooks using the available HDMI or DP ports. Easily secure both your TIO monitor and Tiny Computer with the Kensington lock for additional security.
Remote meetings at its core

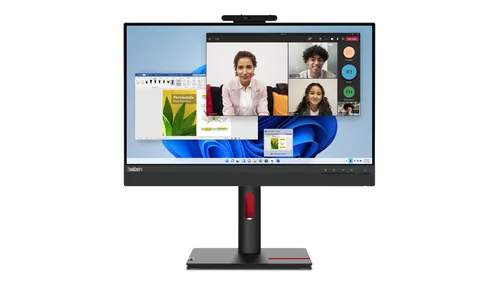

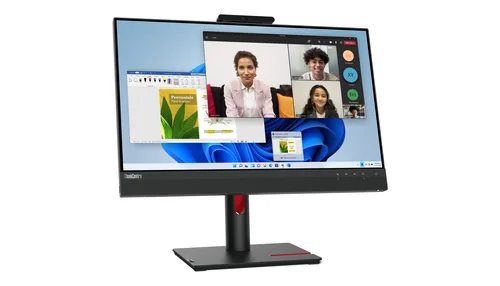

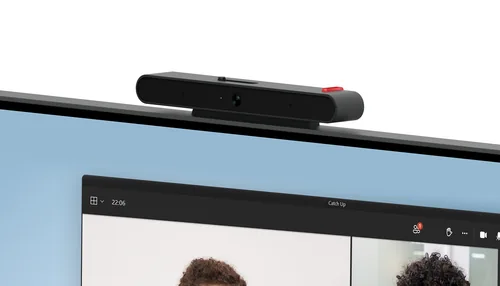

The TIO 24 Gen 5 gives you plug-and-play functionality with Lenovo’s Tiny PCs. A 1080p RGB webcam captures you accurately and two built-in 3W speakers help you listen to your colleagues clearly during meetings. Dedicated VoIP buttons make attending your meetings easier than ever. The menu Joystick allows you to tweak your screen’s settings easily. A dedicated privacy shutter allows you to cover the camera for privacy once a meeting ends. The Smart Traffic Light indicator shows the status of an ongoing meeting to avoid potential disruptions.
Your partner as well as nature’s

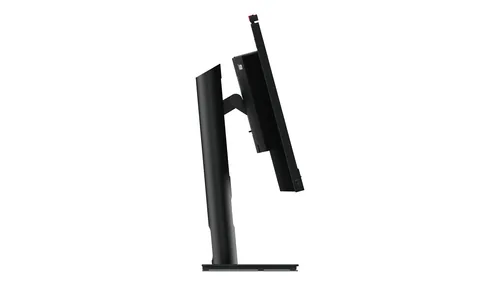

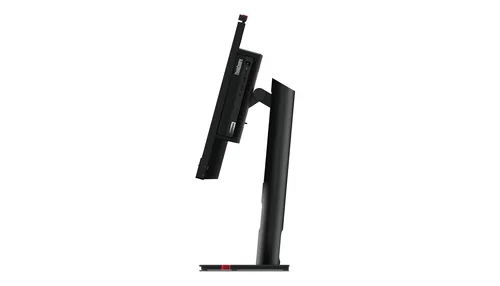

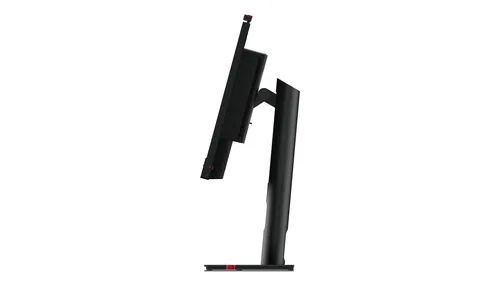

Experience clear and sharp detail, and a wide field of view on the monitor’s 23.8-inch FHD In-Plane Switching panel that supports a 99% sRGB color gamut. During long hours of exposure, the Eyesafe 2.0 certified technology and Natural Low Blue Light technology reduces harmful blue light without any color distortion. The TIO 24 Gen 5 also eases your physical comfort with options to lift and lower its height to match your seating position. The monitor is packaged in recycled paper and comes with the option to select a CO2 offset service, which allows you to do your bit for the environment.
Features
Technical details
Panel type:
IPS
Packaging content
Cables included:
Power
Quick start guide:
Yes
Power cable length:
1 m
Power adapter included:
Yes
Stand included:
Yes
Packaging data
Package weight:
9.5 kg
Package height:
420 mm
Package depth:
187 mm
Package width:
620 mm
Weight & dimensions
Bezel width (bottom):
4.6 cm
Bezel width (top):
2 mm
Bezel width (side):
2 mm
Weight (without stand):
3.7 kg
Height (without stand):
367.6 mm
Depth (without stand):
72.8 mm
Width (without stand):
539.8 mm
Weight (with stand):
6 kg
Height (with stand):
539.6 mm
Depth (with stand):
207.6 mm
Width (with stand):
539.8 mm
System requirements
Compatible operating systems:
Windows 10
Windows 11
Windows operating systems supported:
Windows 10, Windows 11
Audio
Built-in microphone:
Yes
RMS rated power:
6 W
Multimedia
Built-in camera:
Yes
Number of speakers:
2

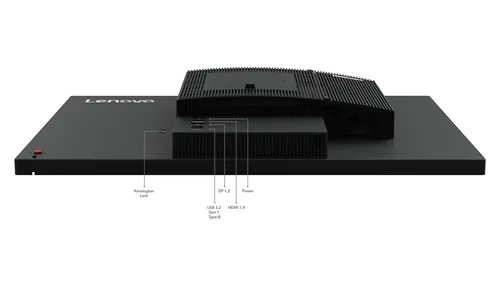

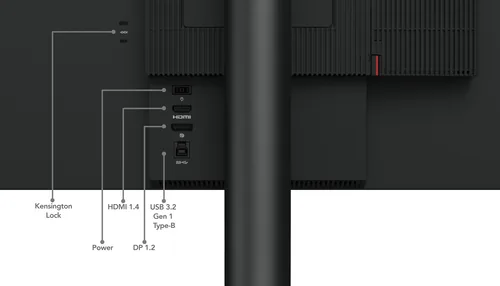

Ports & interfaces
PC Audio out:
No
HDMI:
Yes
Built-in KVM switch:
Yes
Headphone out:
No
DisplayPort version:
1.2
DisplayPorts quantity:
1
HDMI version:
1.4
HDMI ports quantity:
1
USB Type-C DisplayPort Alternate Mode:
No

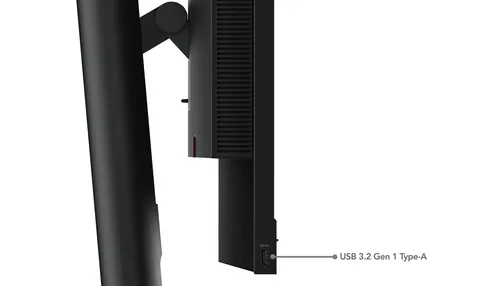

USB Type-A downstream ports quantity:
1
Number of USB Type-B upstream ports quantity:
1
Number of upstream ports:
1
USB upstream port type:
USB Type-B
USB hub version:
3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub:
Yes
Power
AC input frequency:
50 - 60 Hz
AC input voltage:
100 - 240 V
USB Power Delivery (USB PD):
No
Power consumption (off):
0.3 W
Power supply type:
External
Energy efficiency scale:
A to G
Power consumption (max):
34 W
Power consumption (standby):
0.5 W
Power consumption (typical):
14 W
Energy consumption (SDR) per 1000 hours:
14 kWh
Energy efficiency class (HDR):
Not available
Energy efficiency class (SDR):
D
Features
Brand:
Lenovo
Certification:
ENERGY STAR Certified, TCO 9.0, TCO Edge 2.0, EPEAT Gold, RoHS, EU Energy Level-D, Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort
Colour name:
Black
Built-in speaker(s):
Yes
Response time:
6 ms
Display
sRGB coverage (typical):
99%
Colour gamut:
99%
Colour gamut standard:
sRGB
Colour depth:
8 bit
Viewable size, vertical:
29.6 cm
Viewable size, horizontal:
52.7 cm
Pixel density:
93 ppi
Pixel pitch:
0.275 x 0.275 mm
Response time (fast):
4 ms
Display number of colours:
16.7 million colours
Viewing angle, vertical:
178°
Viewing angle, horizontal:
178°
Maximum refresh rate:
60 Hz
Contrast ratio (dynamic):
3000000:1
Contrast ratio (typical):
1000:1
Screen shape:
Flat
Anti-glare screen:
Yes
Response time measurement type:
GTG (Gray to Gray)
Display brightness (typical):
250 cd/m²
Touchscreen:
Yes
Backlight type:
W-LED
LED backlight:
Yes
Display technology:
LED
Native aspect ratio:
16:9
HD type:
Full HD
Display resolution:
1920 x 1080 pixels
Display diagonal:
60.5 cm (23.8")

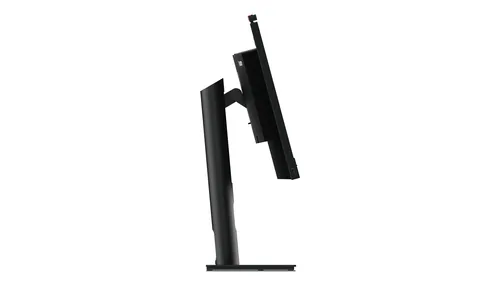

Ergonomics
On Screen Display (OSD):
Yes
Tilt adjustment:
Yes
Swivel angle range:
-45 - 45°
Swivelling:
Yes
Pivot angle:
-5 - 90°
Pivot:
Yes
Adjustable height (max):
15.5 cm
Cable lock slot type:
Kensington
Cable lock slot:
Yes
Cable management:
Yes
VESA mounting:
Yes
Height adjustment:
Yes
Network
Ethernet LAN:
No
Mounting
Panel mounting interface:
100 x 100 mm
Performance
Low Blue Light technology:
Yes
AMD FreeSync:
No
NVIDIA G-SYNC:
No
Design
Market positioning:
Business
Product colour:
Black
Feet colour:
Black, Red
Detachable stand:
Yes
Stand adjustment:
Tilt, Swivel, Pivot, Height Adjust Stand
Camera
Tilt angle range:
-5 - 23.5°
