Product Details
Description
TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
Features
Quality of Service (QoS) support:
Yes
Switch type:
Unmanaged
Logistics data
Harmonized System (HS) code:
85176990
Packaging data
Package depth:
128 mm
Package height:
92 mm
Package weight:
290 g
Package width:
125 mm
Operational conditions
Heat dissipation:
9.466 BTU/h
Storage relative humidity (H-H):
5 - 90%
Operating relative humidity (H-H):
10 - 90%
Storage temperature (T-T):
-40 - 70 °C
Operating temperature (T-T):
0 - 40 °C
Design
LED indicators:
Activity, LAN, Power

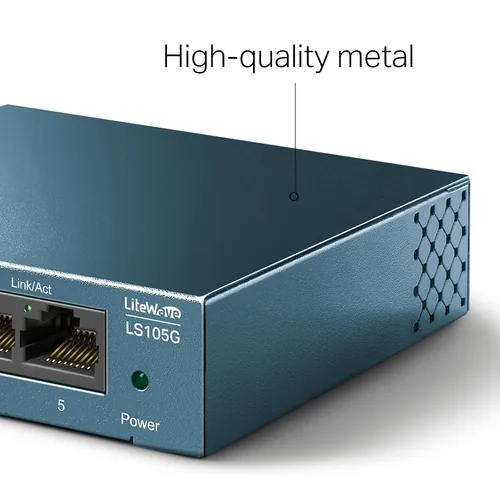

Housing material:
Metal
Rack mounting:
No
Packaging content
Quick start guide:
Yes
Weight & dimensions
Height:
25 mm
Depth:
98 mm
Width:
99.8 mm
Ergonomics
Wall mountable:
Yes
Performance
Auto MDI/MDI-X:
Yes
Power
Power consumption (max):
2.776 W
Input voltage:
5 V
Power source:
DC
Power supply included:
Yes
Network
Auto-negotiation:
Yes
10G support:
No
Networking standards:
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Features
Brand:
TP-Link
Product colour:
Blue
Input current:
0.6 A
Ports & interfaces
Power connector:
DC-in jack
Gigabit Ethernet (copper) ports quantity:
5
Basic switching RJ-45 Ethernet ports type:
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity:
5
Data transmission
Packet buffer memory:
1 MB
Jumbo frames:
16000
Jumbo frames support:
Yes
MAC address table:
2000 entries
Forwarding rate:
7.4 Mpps
Switching capacity:
10 Gbit/s
