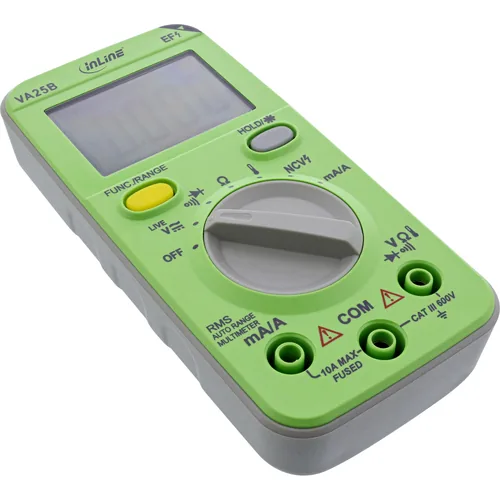

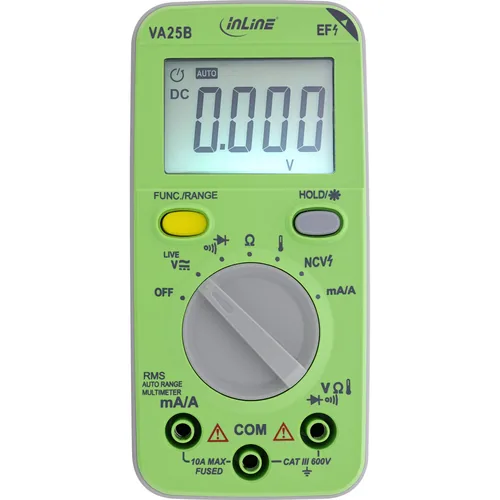

InLine 43117A multimeter Digital multimeter CAT III 600V

Auto-range multimeter in pocket format for versatile testing

Fast measurement results without readjustment:Auto-range automatically selects the appropriate range for you.
Voltage testing without contact:NCV/LIVE test helps you identify live conductors.
Reliable AC measurements:True RMS provides reliable values even with distorted signals.
Compact for field use:Pocket format, backlit display and flashlight make work easier in tight, dark areas.
Designed for distribution boards:CAT III 600 V supports your measurements on installations and devices.

With this compact auto-range multimeter you measure AC/DC voltage and current, resistance, continuity, diodes, and temperature. The automatic range selection speeds up the work, while True RMS delivers reliable results even with non-sinusoidal signals. The 1999 LCD with backlight and the integrated flashlight make reading easier; the automatic shutdown conserves the batteries.
In on-site installations and service deployments, it enables quick tests in control cabinets, distribution boards and existing infrastructures of companies and public institutions. In professional IT environments, the non-contact voltage test supports safe workflows, while the pocket format makes transport in the tool case or jacket pocket easier.

Dimensions:130 x 62 x 27 mm
Measurement functions:ACV, DCV, resistance, continuity, diode, continuity, NCV, mA, A
DC voltage (DCV):200 mV/2 V/20 V/200 V/600 V
AC voltage (ACV):200 mV/2 V/20 V/200 V/600 V
DC current (DCA):2000 mA~10.00 A
AC current (ACA):2000 mA~10.00 A
Resistance:200 Ohm/2 kOhm/20 kOhm/200 kOhm/2 MOhm/20 MOhm
Temperature:-200 °C to 1200 °C
Display:1999 LCD, size 44 x 30 mm
Test:NCV/LIVE test, continuity, diode, continuity
Measurement method:True RMS
Safety rating:CAT III 600 V
Shutdown:automatic
Illumination:backlight, flashlight
Power supply:2 x 1.5 V AAA (included)
