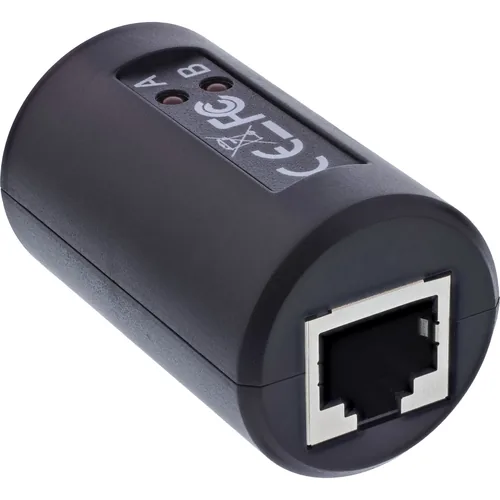

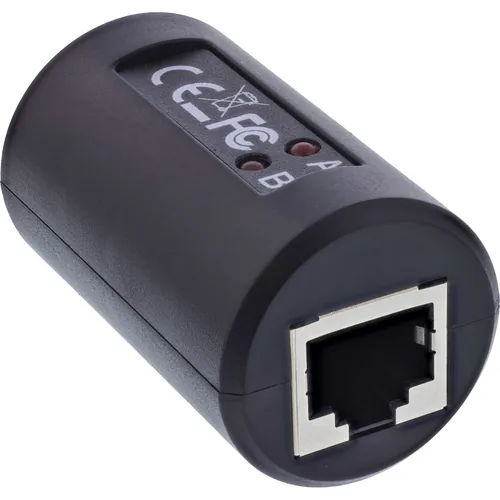

InLine 79999P multimeter PoE tester

Compatible with PoE and PoE+ standards:Supports IEEE 802.3af and IEEE 802.3at for reliable testing of professional network installations.
Distinguishes between midspan and endspan:LED indicators clearly show whether PoE voltage is present via pins 1/2/3/6 or 4/5/7/8.
Simple live testing:Ideal for quick on-site diagnostics, e.g. before installing IP cameras or access points.
Designed for tech professionals:Compact, easy to understand and specially designed for use in IT environments.
Increase network security:Reduces installation errors and protects connected PoE end devices from incorrect voltages.

The InLine® PoE Tester is a practical tool for testing PoE and PoE+ capable network connections in accordance with IEEE 802.3af and IEEE 802.3at. Whether in professional IT environments, when installing IP cameras or maintaining networks, the compact test device uses an LED display to reliably show you whether a port is powered by PoE and whether it is a midspan or endspan power supply.

Test range:37–57 V DC (PoE standard)
Voltage tolerance:24–60 V AC/DC
Current consumption:< 10 mA
Insulation voltage:> 1500 V AC
Connection:RJ45 socket with supplied patch cable
